產品展示

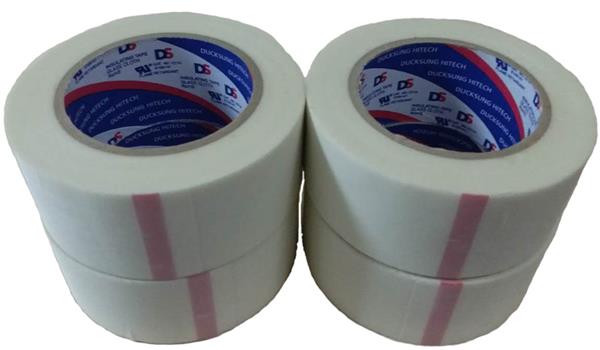

玻璃布膠帶221H韓國DuckSung
點擊次數：0發布時間：2021/12/1 15:38:29
更新日期：2023/2/17 9:27:33
所 在 地：中國大陸
產品型號：221H
優質供應
詳細內容
變壓器，線圈，電機，石英管,高周波設備絕緣
品牌: DuckSung 顏色: 白色 型號: 221H 基材: 玻璃布
主要成份: 硅膠 總厚: 0.21mm 粘力: 3.9N/10mm 產地: 韓國
用途: 變壓器包扎絕緣、電機線圈包扎絕緣、高周波設備、微波爐石英管部分等
221H
SiliconeGlass Cloth Tape
PRODUCT DISCRIPTION
221H is a white glass cloth tape, single coated with a silicone adhesive.
TECHNICAL DATA
| Classification | Unit | Typical values | Tolerance | Remarks |
| Backing thickness | mm | 0.14 | 0.14~0.15 | ASTM D3652 |
| Adhesive thickness | mm | 0.07 | 0.065~0.07 | ASTM D3652 |
| Total tape thickness | mm | 0.21 | 0.205~0.215 | ASTM D3652 |
| Liner description | - | - | - | - |
| Color | - | White |
| - |
| Adhesive to steel | gf/25mm | 1300 | 850~1300 | ASTM D3330 |
| Tensile strength | kg/10mm | 19 | 18 over | ASTM D3759 |
| Elongation | % | 5 | 4~6 | ASTM D3759 |
| Insulation class | (a) | H | H | DS-Method |
| Dielectric breakdown | KV | 3.0 | 2.5 over | ASTM D149 |
| Electrical resistance | Ω | - | - | ASTM D257 |
| UL file No. | E105147 |
|
|
|
| Heat Retardant | UL510 |
|
|
|
(a) Heat resistance class: “Y”90℃, “A”105℃, “E”120℃, “B”130℃, “F”155℃, “H”180℃, “200”200℃, “220”220℃.
TYPICAL APPLICATIONS
Protect specific areas of an electronic parts. Insulating the parts of aircraft, electronic, trains ａnd special electronic components. Holding, sealing, splicing. High-temp application.
FEATURES AND BENEFITS
Excellent heat, cold, solvent ａnd voltage resistance. Flame retardant.
韓國高溫玻璃纖維布膠帶221H
